LMI Professional-Grade
3D Wood Scanners
LMI offers cost-efficient Gocator® laser profilers for log scanning. These sensors provide the 2D intensity and 3D shape data, high-speed, high-resolution, and wide fields of view (up to 2m) for proficient wide-transport system applications. A key advantage of Gocator 3D laser profilers for lineal log scanning is they can be easily networked in a multi-sensor ring layout. Logs are transported on a sharp chain through this sensor ring configuration in order to scan 360º of the log surface and generate a complete 3D point cloud aligned to a global coordinate system.
Gocator
Gocator
Gocator
Gocator
Cost-efficient sensors for general log scanning applications.
Ideal for cant scanning in lineal gang saw applications.
Profile Speed:
Up to 5 kHz
X Resolution:
0.001” – 0.086”
(0.028 mm – 2.20 mm)
Z Resolution:
0.00007” – 0.0192”
(0.0018 mm – 0.488 mm)
FOV:
0.078” – 49.606”
(18 mm – 1260 mm)
Measurement Range:
0.984” – 31.496”
(25 mm – 800 mm)
Profile Speed:
Up to 5 kHz
X Resolution:
0.0037” – 0.0433”
(0.095 mm – 1.1 mm)
Z Resolution:
0.0005” – 0.0192”
(0.013 mm – 0.488 mm)
FOV:
3.779” – 49.606”
(96 mm – 1260 mm)
Measurement Range:
8.267”- 31.496”
(210 mm – 800 mm)
Profile Speed:
Up to 5 kHz
X Resolution:
0.551” – 0.043”
(14.0 mm – 1.1 mm)
FOV:
1.1” – 78.7”
(27 mm – 2000 mm)
Measurement Range:
0.1”- 60.0”
(25 mm – 1525 mm)
Profile Speed:
Up to 5 kHz
X Resolution:
0.015” – 0.043”
(0.0375 mm – 1.1 mm)
FOV:
15.4” – 49.6”
(390 mm – 1260 mm)
Measurement Range:
31.5” (800 mm)
Gocator
7500 Series

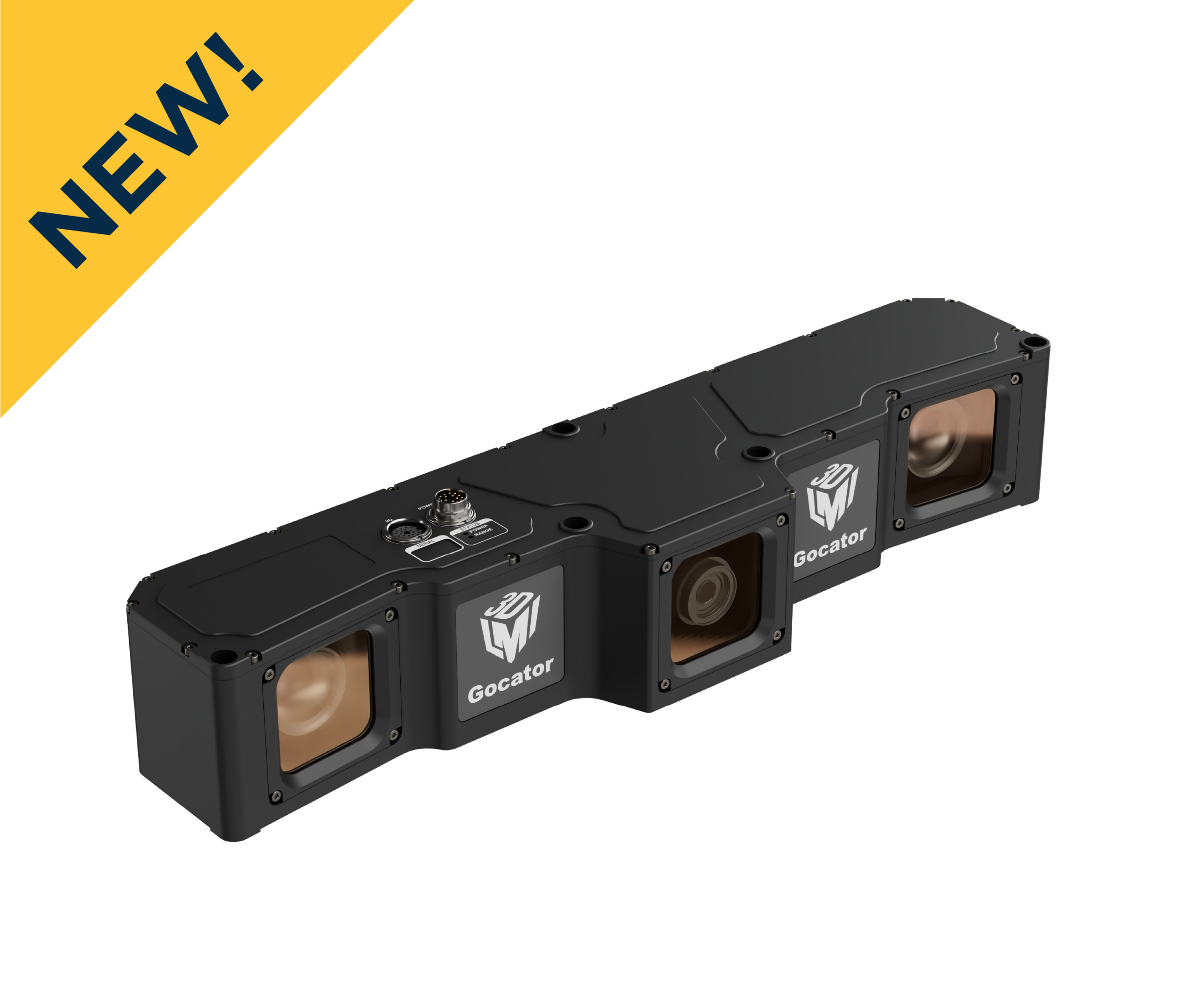

7510

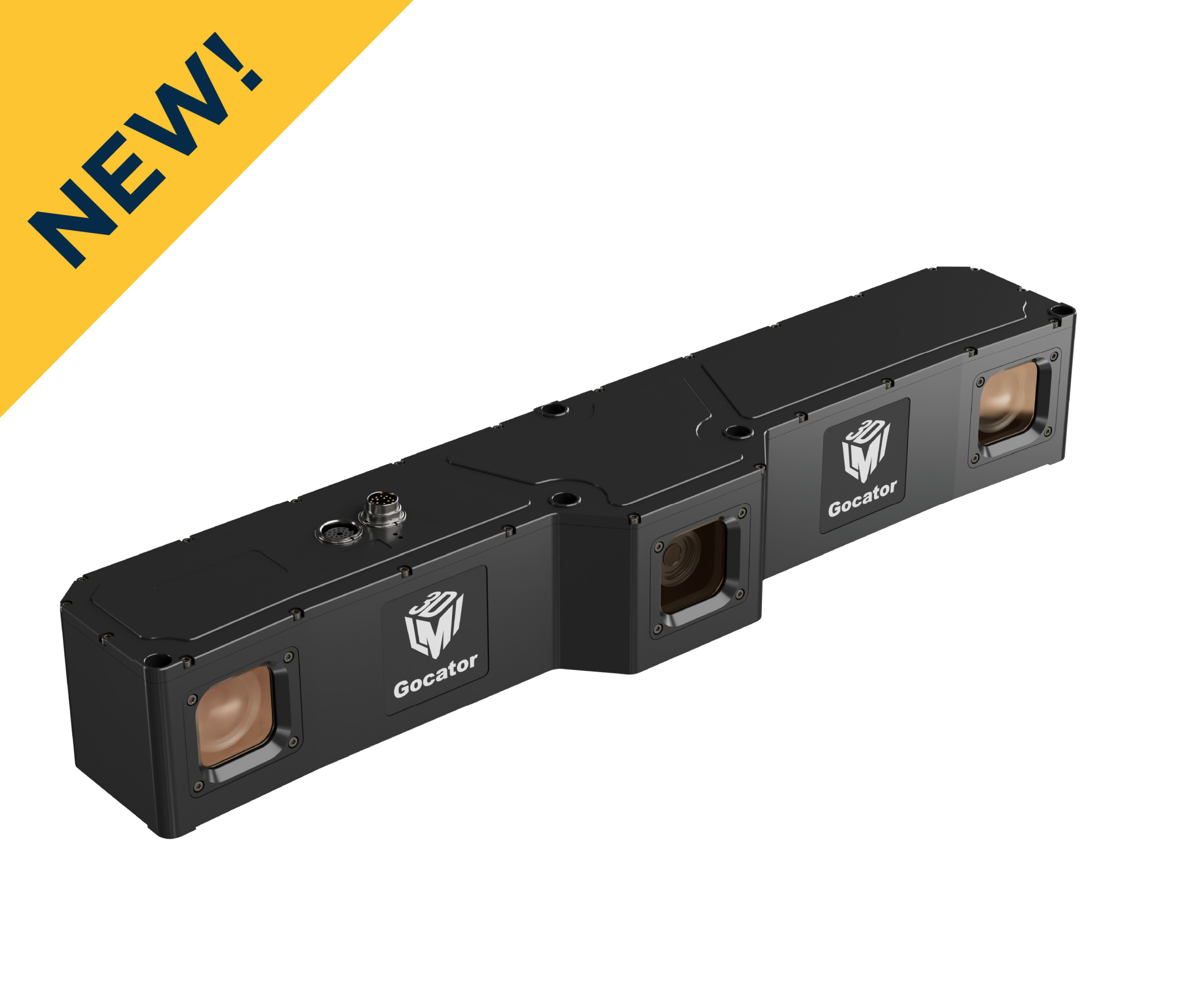

7540

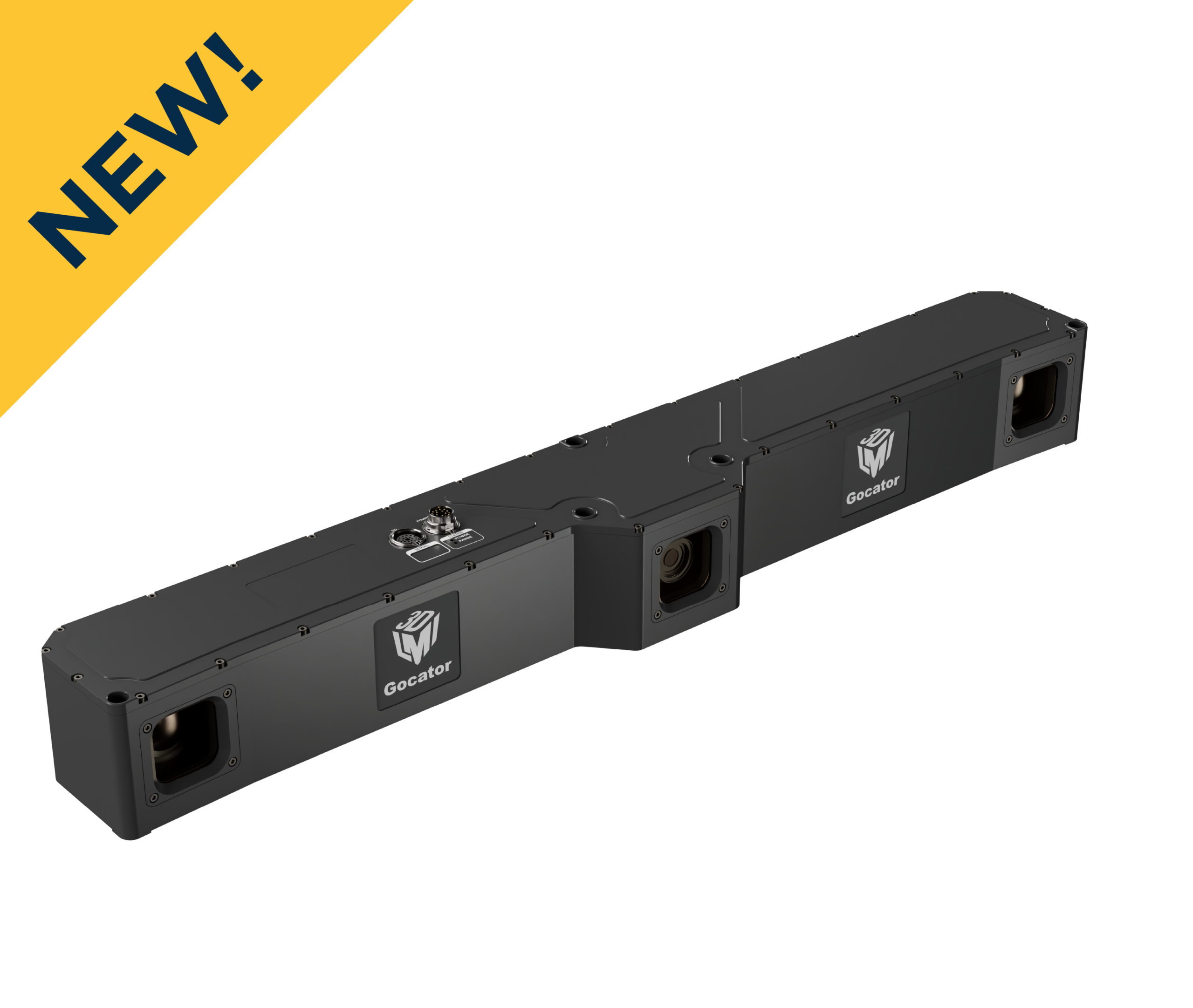

7560
Solid-state snapshot stereo vision delivers high-throughput, laser-free 3D log profiling with minimal maintenance and maximum stability in harsh mill environments.
Scan Speed:
15 Hz
X-Y Resolution (Near-Far):
0.022” – 0.050”
(0.57 mm – 1.27 mm)
FOV:
Near: 1174 × 1145 mm
(46.220” × 45.078”)
Far: 2990 × 2508 mm
(117.716” × 97.740”)
Measurement Range:
39.370” (1000 mm)
Scan Speed:
15 Hz
X-Y Resolution (Near-Far):
0.022” – 0.041”
(0.55 mm – 1.04 mm)
FOV:
Near: 1142 × 1140 mm
(44.960” × 44.881”)
Far: 2480 × 2101 mm
(97.637” × 82.716”)
Measurement Range:
57.086” (1500 mm)
Scan Speed:
15 Hz
X-Y Resolution (Near-Far):
0.032” – 0.059”
(0.82 mm – 1.50 mm)
FOV:
Near: 1730 × 1703 mm
(68.110” × 67.047”)
Far: 3655 × 3095 mm
(143.897” × 121.850”)
Measurement Range:
82.677” (2100 mm)
Note: The Gocator 75xx product is currently in development. Specifications are preliminary and may be subject to change.
Final performance parameters will be confirmed at the official product release.
Lineal Log Scanning with 4x Gocator Laser Profilers in 360º Ring Layout
Gang Saw Optimization with 1x Wide Field of View Gocator Laser Profiler
The Gocator® 200 Series is a dedicated smart multi-point laser profile product line that provides a new level of flexibility and functionality in transverse board scanning applications. Built-on the Gocator smart sensor platform and leveraging the proven high-density profile design of chroma+scan, Gocator® 200 scanners run 50% faster to achieve scan rates up to 4 kHz. In addition, tracheid scan rates are 3x faster to deliver up to 2 kHz density for exceptional detail in wood grain detection.
Gocator.
Gocator.
Gocator.
240/250
Gocator.
Entry-level scanner ideal for trimmer and edger applications in the sawmill. Large measurement range also suitable for cant scanning in transverse gang saw applications.
Profile Speed:
2 kHz
X Resolution (Mid-Range):
1.1” (27.94 mm)
Z Resolution:
0.007” (0.203 mm)
FOV:
24” (609.6 mm)
Clearance Distance:
17” (431.8 mm)
Measurement Range:
14” (355.6 mm)
Profile Speed:
3-4 kHz
X Resolution (Mid-Range):
0.333” (8.5 mm)
Z Resolution:
0.127” (0.005 mm)
FOV:
24” (609.6 mm)
Clearance Distance:
19-20” (482-508.0 mm)
Measurement Range:
8-10” (203-254 mm)
Profile Speed:
3-4 kHz
Tracheid Speed (G250):
1.5-2 kHz
X Resolution (Mid-Range):
0.333” (8.5 mm)
Z Resolution:
0.127” (0.005 mm)
FOV:
24” (609.6 mm)
Clearance Distance:
19-20” (482-508.0 mm)
Measurement Range:
8-10” (203-254 mm)
Profile Speed:
3-4 kHz
XY Resolution (Color):
0.02″ x 0.01″
(0.5 mm x 0.25 mm)
FOV:
24” (609.6 mm)
Clearance Distance:
19-20” (482-508.0 mm)
Measurement Range:
11” (279.4 mm)
Gocator.
Profile Speed:
1.5 kHz
X Resolution:
1.1” (27.94 mm)
Z Resolution:
0.007” (0.203 mm)
FOV:
24” (609.6 mm)
Clearance Distance:
17” (431.8 mm)
Measurement Range:
14” (355.6 mm)
Gocator.
Profile Speed:
3 kHz
X Resolution:
0.334” (8.5 mm)
Z Resolution:
0.127” (0.005 mm)
FOV:
24” (609.6 mm)
Clearance Distance:
20” (508.0 mm)
Measurement Range:
8” (203.2 mm)
Gocator.
Tracheid Speed:
1.5 kHz
Profile Speed:
3 kHz
X Resolution:
0.334” (8.5 mm)
Z Resolution:
0.127” (0.005 mm)
FOV:
24” (609.6 mm)
Clearance Distance:
20” (508.0 mm)
Measurement Range:
8” (203.2 mm)
Gocator.
Profile Speed:
3 khz
XY Resolution:
0.019 x 0.009”
(0.5 mm x 0.25 mm)
FOV:
24” (609.6 mm)
Clearance Distance:
20” (508.0 mm)
Measurement Range:
11” (279.4 mm)
Transverse Board Scanning with Synchronized Bank of Gocator 200 Multi-Point Profilers
